Optonica SX-9100

Data

General

• Manufacturer: Optonica
• Model: SX-9100
• Type: Stereo power amplifier
• Years of manufacture: 1979 - 1982
• Made in: Japan
• Color: Silver, Brown metallic
• Remote control: no
• Power consumption: 900 watts
• Dimensions: 430 x 75 x 447 mm (WxHxD)
• Weight: 15 kg
• New price approx.: 2000,- DM
• Lt yearbook 79/80: 1598,- DM

Connections

• Number of inputs:
  • Line 800 mV/22 KOhm
• Number of outputs:
  • 4x 4 Ohm
  • headphones

Technical Data

• Continuous power (at distortion factor)
  • 8 Ohm: 2x 90 Watt at 0,005%
  • 4 Ohm: 2x 130 Watt at 0,005%
• Dynamic power
  • 8 Ohm: 2x 120 Watt
  • 4 Ohm: 2x 180 Watt
• Total harmonic distortion: 0.005%
• Attenuation factor: 35
• Frequency response: 0 - 70,000 Hz
• Signal-to-noise ratio: 110 dB
• Stereo channel separation:

Special Features

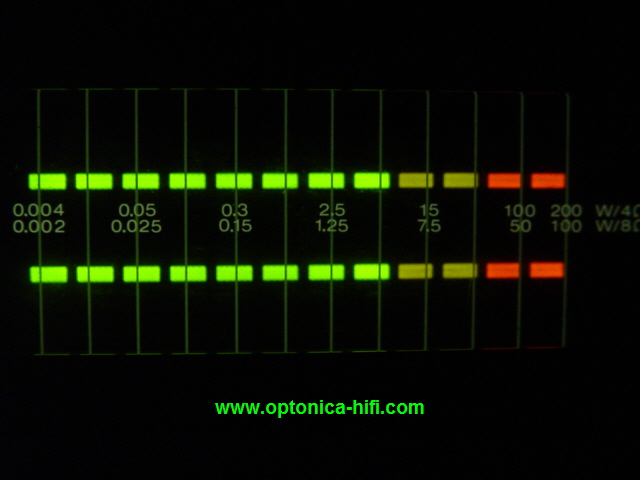

• Power display via channel-separated VFD chain

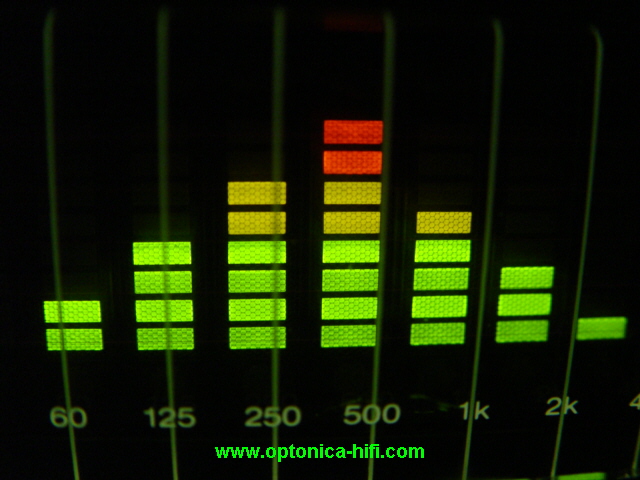

• Spectrum analyzer, switchable left and right

Remarks

• The USA version was called SX-9301 (silver) or SX-9305 (black).

• Other models of the same series:

• Preamplifier:
• Optonica SO-9100
• Power amplifier:
• Optonica SX-9100
• Tuner:
• Optonica ST-9100
• Tape deck:
• Optonica RT-9100
• Turntable:
• Optonica RP-9100
• Programmable Quartz Timer:
• Optonica AD-200 T

• Optonica series 9100
• Optonica 9100 Series
• Optonica 7100 Series
• Optonica 5200 Series
• Optonica System 105
