Optonica SO-9100

Data

General

• Manufacturer: Optonica
• Model: SO-9100
• Type: Preamplifier
• Years of manufacture: 1979 - 1982
• Manufactured in:
• Color: Silver and Brown metallic
• Remote control: no
• Power consumption: 25 Watt
• Dimensions: 430 x 75 x 382 mm (WxHxD)
• Weight: 7 kg
• Original price approx.: 748 DM

Connections

• Number of inputs:
  • Phono 1: 3 mV/47 KOhm
  • Phono 2: 3 mV/22/47/100 KOhm
  • Phono 3: 0,3 mV/100 Ohm
  • Aux, Tuner, 2x Tape: 150 mV/47 KOhm
• Number of outputs:
  • 2x Rec-Out Cinch: 150 mV/47 KOhm

1x Rec-Out DIN: 30 mV/82 KOhm

• • Line-Out

Technical Data

• Frequency response: 5 - 80,000 Hz
• Distortion factor:
• Signal-to-noise ratio: 100 dB
• Stereo channel separation:
• Tone control

Bass: ±10 dB at 100 Hz

• • Treble: ±8 dB at 10,000 Hz
• Loudness: switchable
• High Filter: 8000/15000 Hz -6 dB switchable
• Low Filter (Subsonic): 15/30 Hz -6 dB switchable
• Mute: yes
• Direct/Line-Straight: tone control switchable

Special Features

• Mono switchable
• Overdubbing between Tape 1 and 2
• Input capacitance phono 2 switchable between 200, 300 and 400 pF

Remarks

• Other models of the same series:

• Preamplifier:
• Optonica SO-9100
• Power amplifier:
• Optonica SX-9100
• Tuner:
• Optonica ST-9100
• Tape deck:
• Optonica RT-9100
• Turntable:
• Optonica RP-9100
• Programmable Quartz Timer:
• Optonica AD-200 T

• Optonica series 9100
• Optonica 9100 Series
• Optonica 7100 Series
• Optonica 5200 Series
• Optonica System 105

Pictures

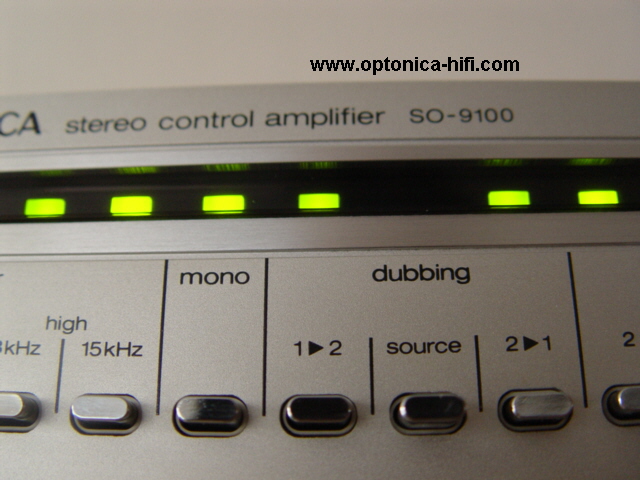

• Image: Optonica SO-9100
