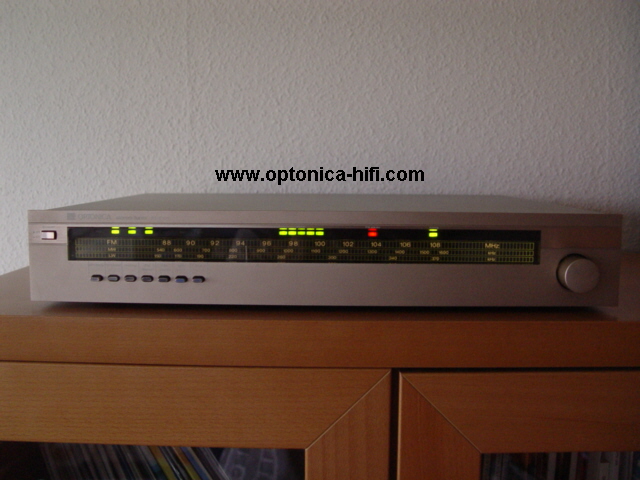

Optonica ST-5100

Data[edit]

General

  • Manufacturer: Optonica
  • Model: ST-5100
  • Years of manufacture: 1980-1981
  • Made in: Japan
  • Color: metallic silver and metallic brown
  • Remote control: no
  • Power consumption: 18 watts
  • Dimensions: 43x7,5x39,3 cm
  • Weight: 5 Kg
  • Original price approx:


Connections

  • Number of outputs
    • Line Fix
  • Number of inputs
    • Antenna 75 Ohm, Antenna 300 Ohm


Technical Data

  • Reception: FM/MW/LW
  • Frequencies:
    • FM: 87.6 - 108 MHz

MW: 520 - 1620 KHz LW: 150 - 370 KHz

  • Frequency response: 30 - 15000 Hz
  • Input sensitivity: 1.3µV (mono), 39 µV (stereo)

Distortion factor: 0.2% (mono), 0.3% (stereo) Signal-to-noise ratio: 68 dB (mono), 62 dB (stereo)

  • Channel separation: 40 dB
  • Selectivity: 40 dB
  • Co-wave selection: 2.5 dB
  • Spurious wave selection:
  • IF attenuation: 80 dB
  • IF attenuation: 80 dB
  • AM suppression: 50 dB
  • Output level: 400 mV
  • RDS: No
  • Station memory: No


Special Features

  • Muting switchable
  • Test tone generator
  • High-blend switchable
  • Field strength display

Remarks[edit]

Other models in the same series:
