Optonica ST-7100

Data

General

• Manufacturer: Optonica
• Model: ST-7100
• Type: Tuner
• Years of manufacture: 1981 - 1982
• Made in: Japan
• Color: Metallic Silver and Metallic Brown
• Remote control: no
• Power consumption: 20 watts
• Dimensions: 430 x 75 x 393 mm (WxHxD)
• Weight: 6.1 kg
• Original price approx.: 948 DM

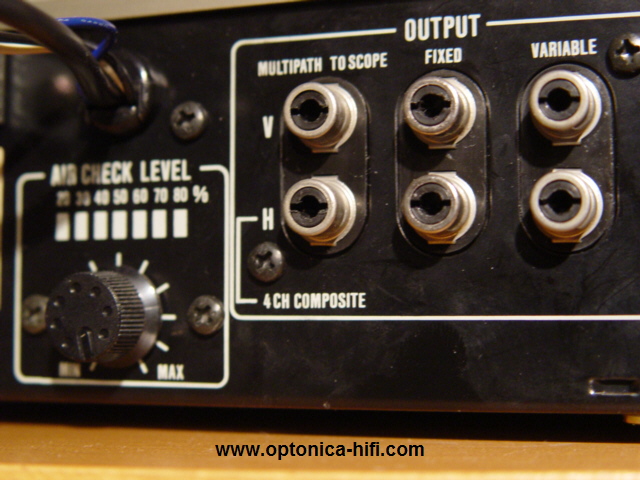

Connections

• Number of outputs

Line Fix, Line adjustable

• Number of inputs
  • Antenna 75 Ohm, Antenna 300 Ohm

Technical Data

• Reception: FM/MW
• Frequencies:
  • VHF: 87.6 - 108 MHz

MW: 520 - 1620 KHz

• Frequency response: 30 - 15000 Hz
• Input sensitivity: 1µV (mono), 28 µV (stereo)

Distortion factor: 0.16% (mono), 0.22% (stereo) Signal-to-noise ratio: 68 dB (mono), 62 dB (stereo)

• Channel separation: 42 dB
• Selectivity: 55 dB
• Co-wave selection: 1.5 dB
• Spurious wave selection:
• IF attenuation: 100 dB
• IF attenuation: 100 dB
• AM suppression: 50 dB
• Output level: 350 mV (fixed), 0-500 mV (adjustable)

Special Features

• IF bandwidth switchable
• Muting switchable
• Test tone generator
• High-blend switchable

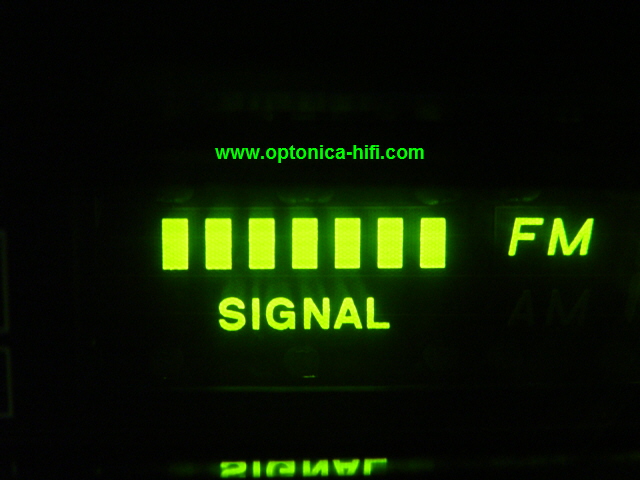

• Field strength display, switchable to multipath display
• Adjustable output level

Remarks

• Other models in the same series:
• Optonica ST-105
• Optonica ST-5200
• Optonica ST-7100
• Optonica ST-9100

Pictures

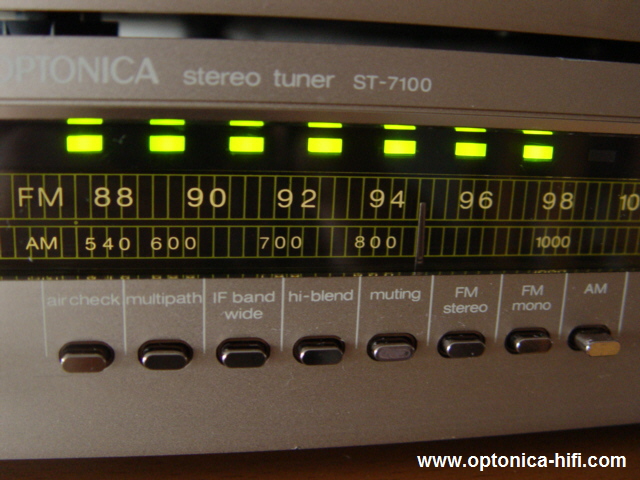

• Image: Optonica ST-7100

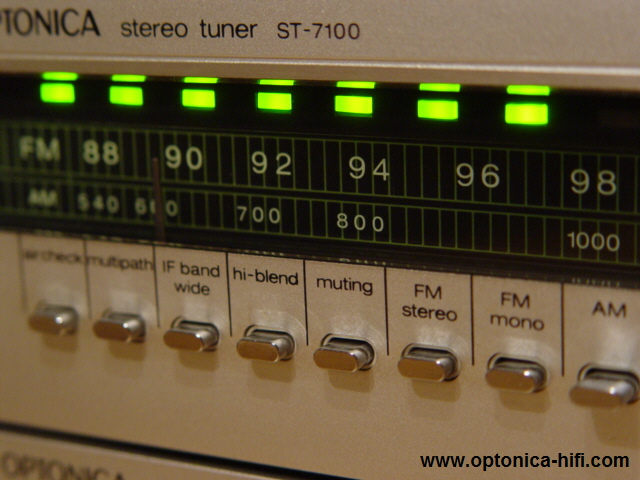

• Image: Optonica ST-7100

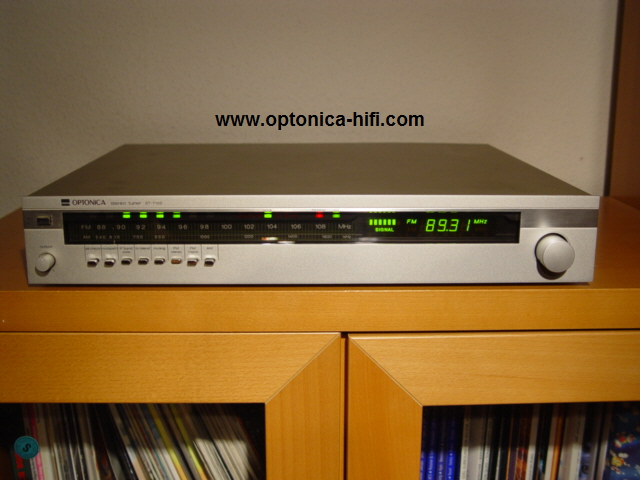

• Image: Optonica ST-7100

• Image: Optonica ST-7100

• Image: Optonica ST-7100

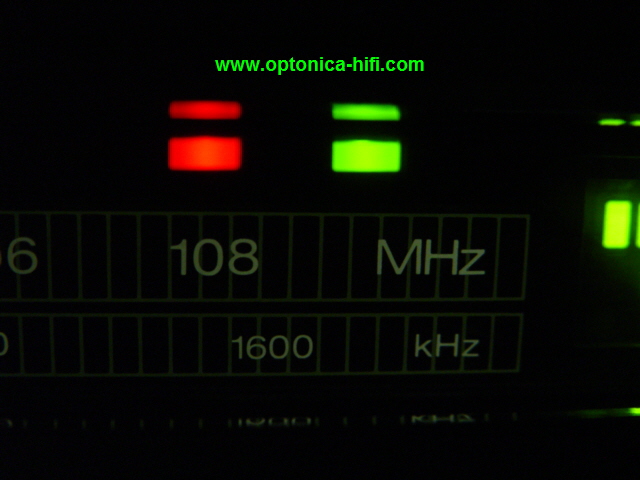

• Image: Optonica ST-7100
