Canton GLE 100

Data

General

• Manufacturer: Canton
• Model: GLE 100
• Years of manufacture: 1979 - 1981
• Made in: Germany
• Color: walnut, structure varnish black, structure varnish white
• Dimensions: 340 x 550 x 285 mm (W x H x D)
• Weight: 14,4 kg
• Original price approx.: 1460,- DM (RRP pair)

Technical data

• Type: 3-way, compact speaker
• Chassis:
  • woofer: 1x 310 mm (long-throw woofer chassis) No. 3360
  • midrange driver: 1x 38 mm (midrange dome) No. 3372
  • tweeter: 1x 20 mm (tweeter dome) No. 3373, as replace No. 3824 (also with double magnet) is used.

power handling (nominal/music): 100 / 150 Watt

• for amplifiers: 40 - 140 Watt (sinus)
• for rooms up to: 28...55m²

efficiency: - dB

• frequency response: 22 - 30.000 Hz
• crossover ranges: 800 / 2600 Hz

impedance: 4 Ohm (4..8 Ohm in the brochures is not according to the standard, all loudspeakers of all manufacturers have 4 Ohm according to the standard)

Special equipment

• Removable front grille
• Younger models with replaceable tweeter fuse
• Clearly, if not immediately obvious, designed for recumbent operation.
• Had got myself a pair on a whim and experimented around with them-.
• Lying L/R as specified, i.e. tweeter/midrange inwards, they sound worlds better than standing.
• Doesn't look so great anymore, but ..... who wants to sound good, has to suffer!
• However, it makes sense to replace the crossover capacitors with new ones. It doesn't have to be the upper class Mundorf. But good IT Audyn make a difference. I can only advise that. Furthermore, it makes sense to replace the insulation with pyramid foam (5cm) and leave nothing else in it.

Then you search a long time to find something comparable. Precise, dry and airy bass, great mids and crystal clear highs.... Alright, spaciousness is not like a point source, but OK. Fits. Have fun, with quite cheap, totally underrated speakers!

Comments

• Other models in the same series:
• GLE 40
• GLE 40 F
• GLE 45
• GLE 50
• GLE 60
• GLE 70
• GLE 100

• [[Predecessor model:
• Canton LE 900

• Successor model:
• Canton Quinto 540

Pictures

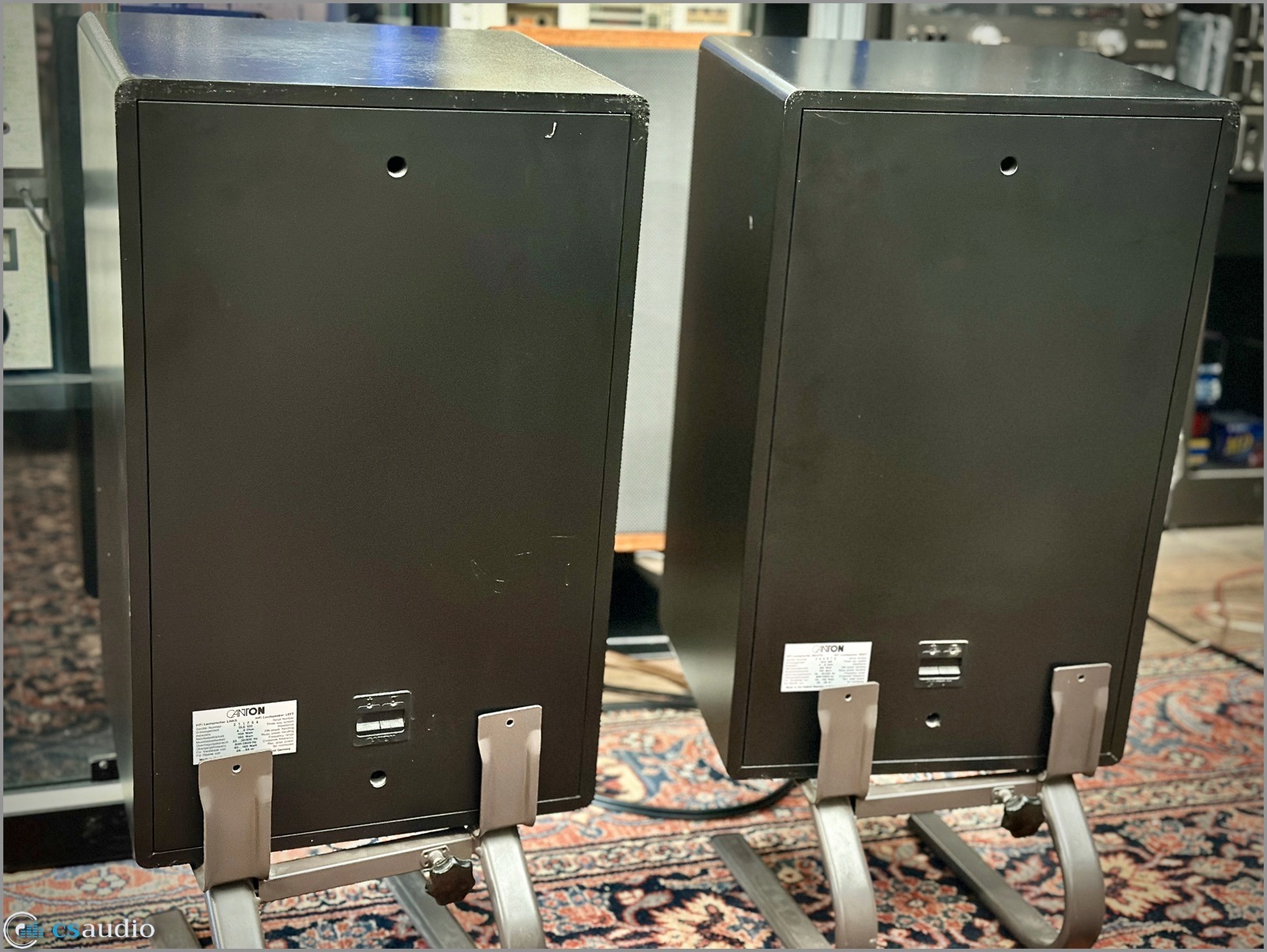

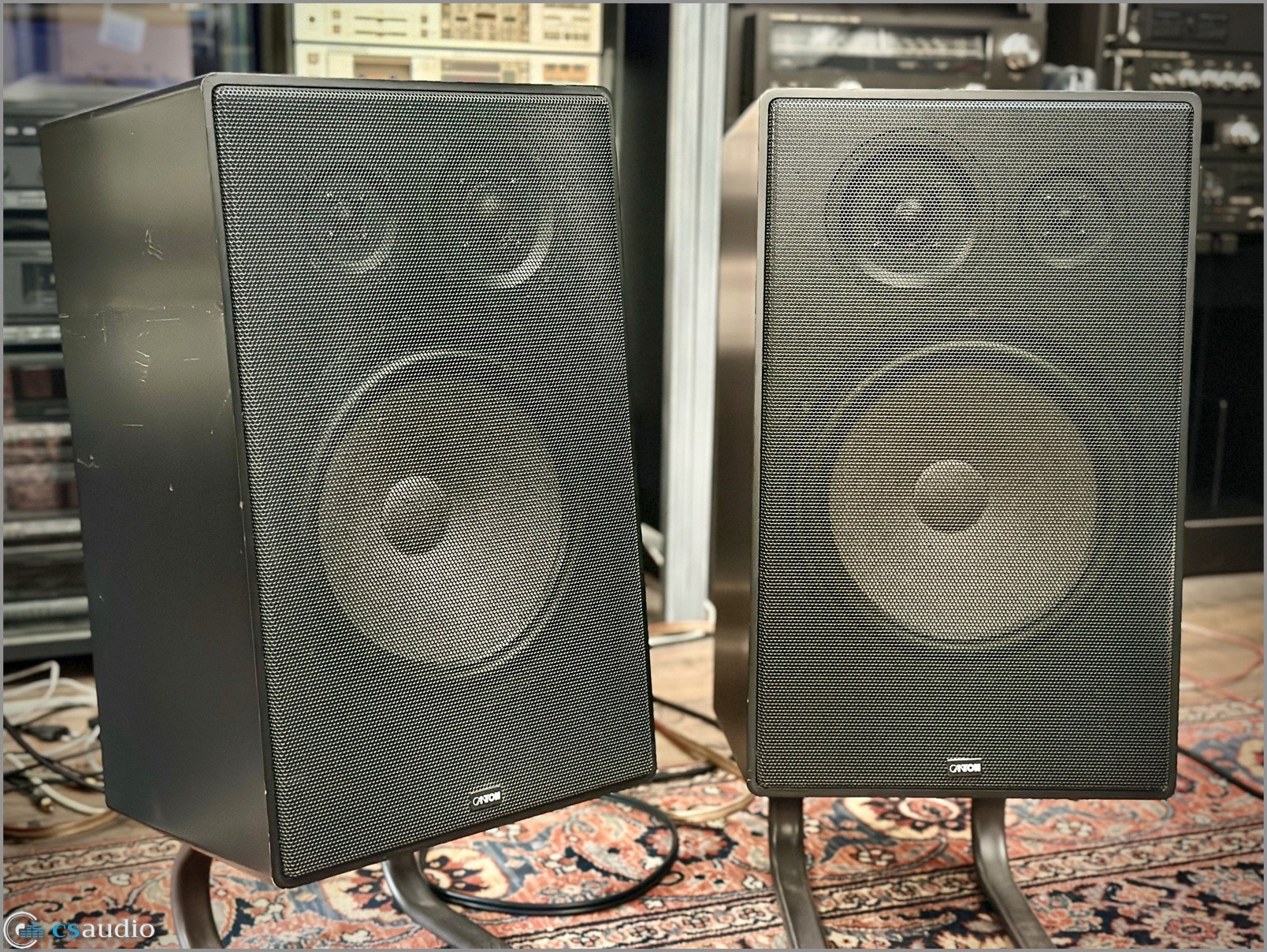

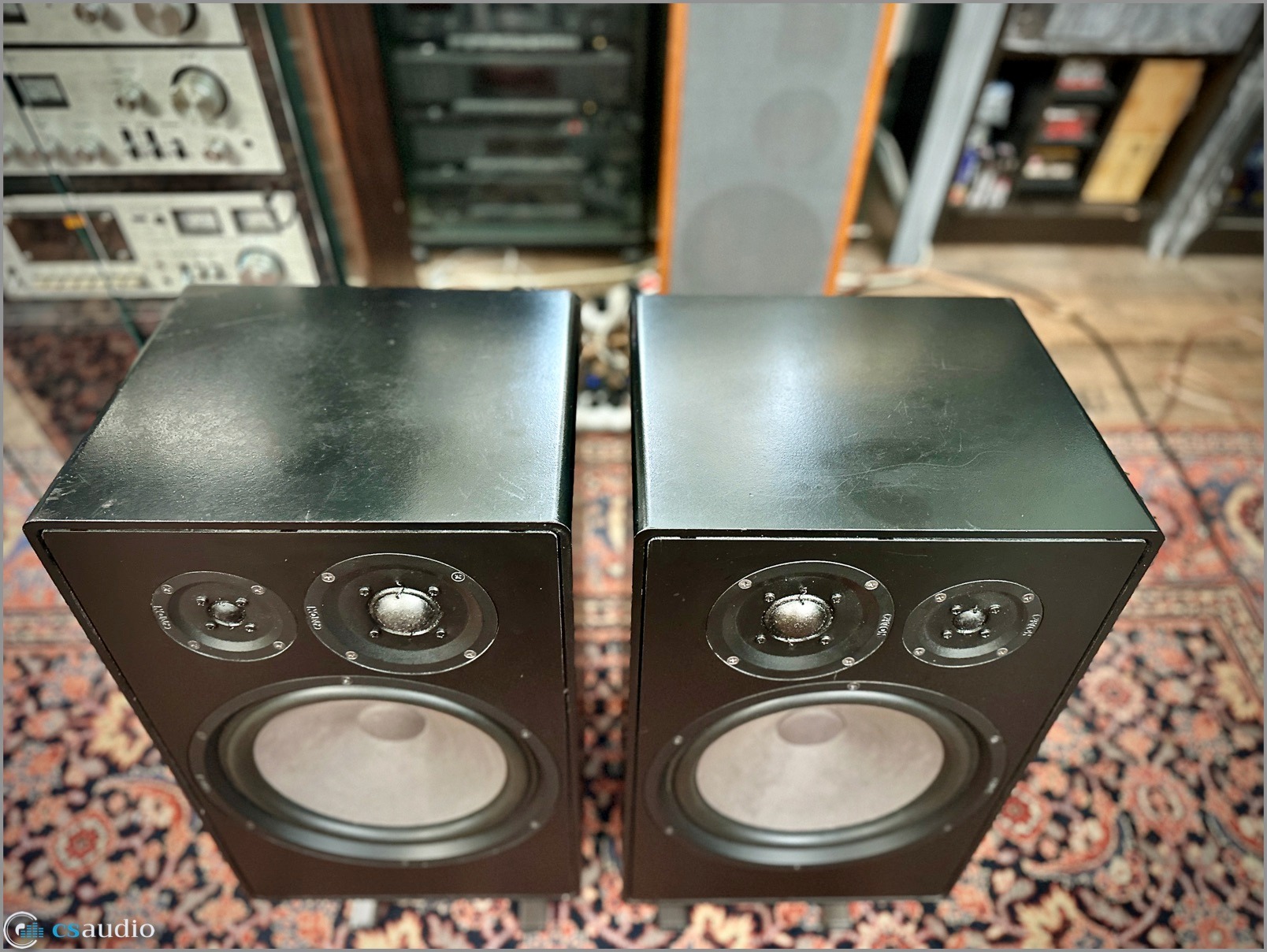

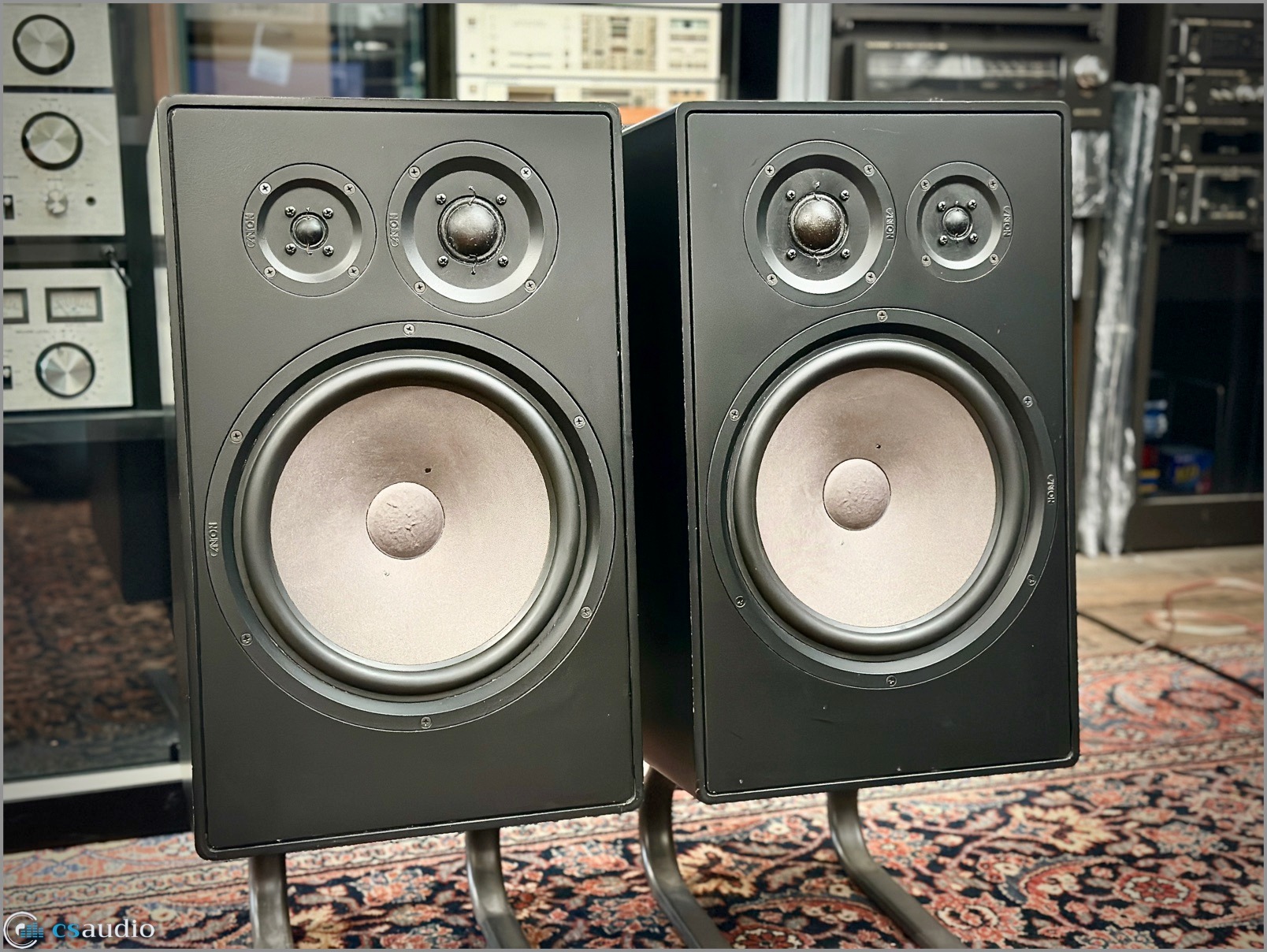

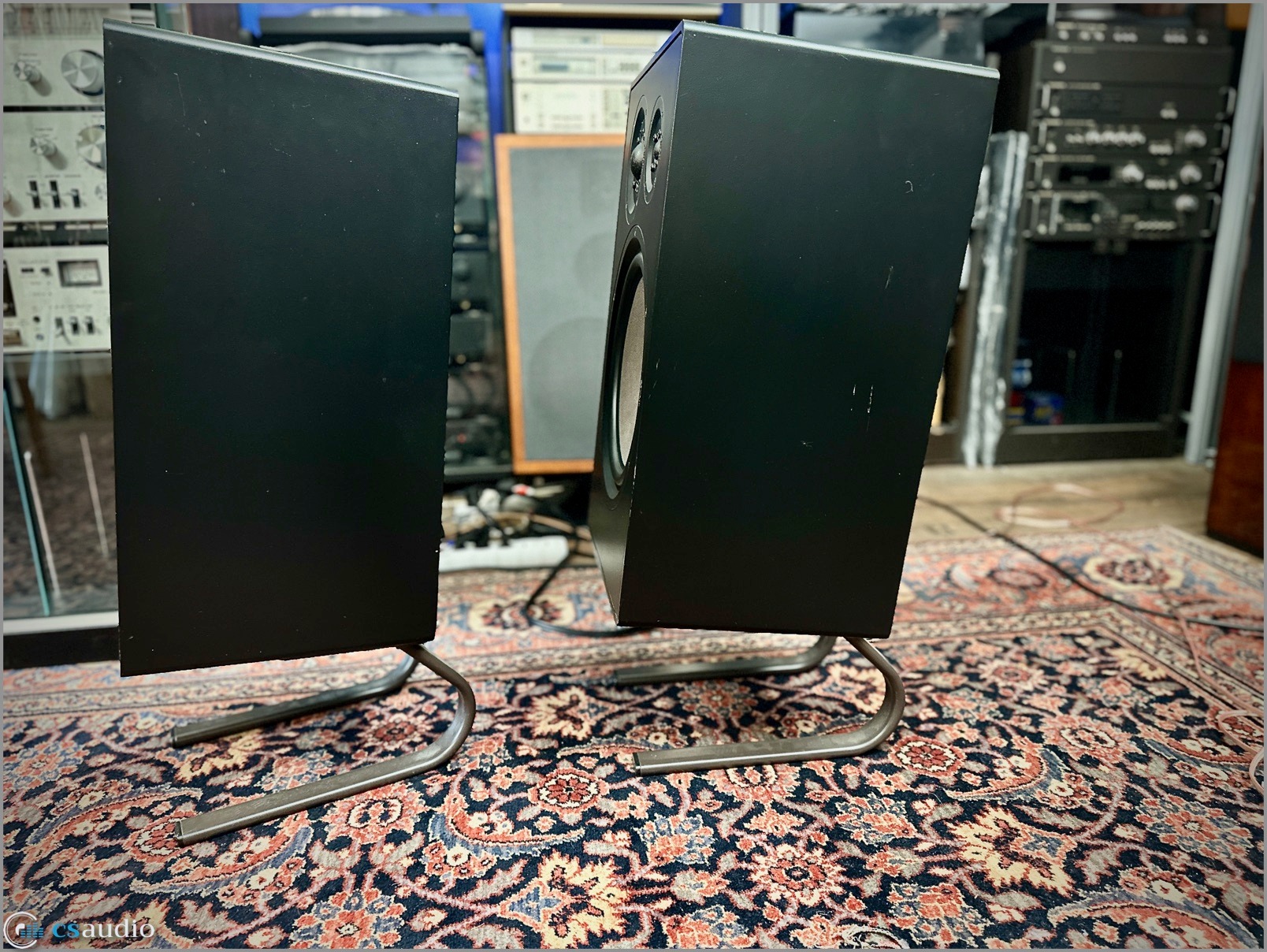

• Picture: Canton GLE-100

• Picture: Tweeter of the GLE 100 (type 3373 with double magnetic core):

• On the left the original speaker, on the right the replacement speaker from Canton after more than 30 years. The chassis of the original speaker is die-cast aluminum, that of the replacement speaker is plastic.

Reports

• For rooms from 28 - 55 m² (manufacturer's specification).
• The speaker has very sensitive dome tweeters. Therefore, used speakers should be tested before buying. Defective tweeters can even be repaired by Canton today (2007), if you send them in! Costs: approx. 70 €/piece. The repair is called reconen at Canton. For this reason, Canton has equipped more recent models with a screw-out tweeter fuse in the rear panel. If you want to retrofit this yourself, you will need a fuse (1.25 A Flink) and a screw-on fuse holder to install it. The fuse is connected in the positive wire between crossover and tweeter.

The GLE 100 was manufactured as a left and right speaker, i.e. the speaker pair is asymmetrical, as the tweeter is always located on the outside.

• The capacitance values of the electrolytic capacitors are:
• ELKO smooth
• 20 VAC
• 3384 10M
• TFZ/TM
• bipolar GPF 33µF / 23 VAC +/-5%; dim: 18x35mm

• ELKO smooth
• 25 VAC
• 2379 12M
• ALR/U
• bipolar GPF 15µF / 23 VAC +/-5%; dim: 14x35mm

• ELKO smooth
• 25 VAC
• 2800 7M
• ALR/U
• bipolar GPF 56µF / 23 VAC +/-5%; dim: 25x35mm

• The sound of the box is excellent!

• At that time a "high flyer". It should be noted that the tweeter is very sensitive. I used to kill 2 of them.

The last series has fuses in front of the tweeters. Today the sound does not inspire me any more so. Find the treble are tuned too loud and from the voices missing the chest.
