Quadral Shogun Mk V

Data

General

• Manufacturer: Quadral
• Model: Shogun Mk V
• Years of manufacture: ca. 1992 - 1998?
• Manufactured in: Hanover, Germany
• Colour: walnut, mahogany, black oak, rustic oak, cherry, alder; special order: natural oak
• Dimensions: 917 x 260 x 310 mm (H x W x D)
• Weight: 20 kg
• Original price approx.: 848,- DM / piece

Technical Data

• Construction: 3-way bass reflex
• Chassis:
  • Woofer: 1x 170 mm
  • Midrange driver: 1x 110 mm
  • Tweeter: 1x dome tweeter
• power handling (nominal/music): 100 / 150 W
• Efficiency: 88 dB/1W/1m
• Frequency response: 30 - 25.000 Hz
• crossover frequency: 200 / 3,800 Hz
• Impedance: 4 Ohm

Special Features

• magnetically shielded

Remarks

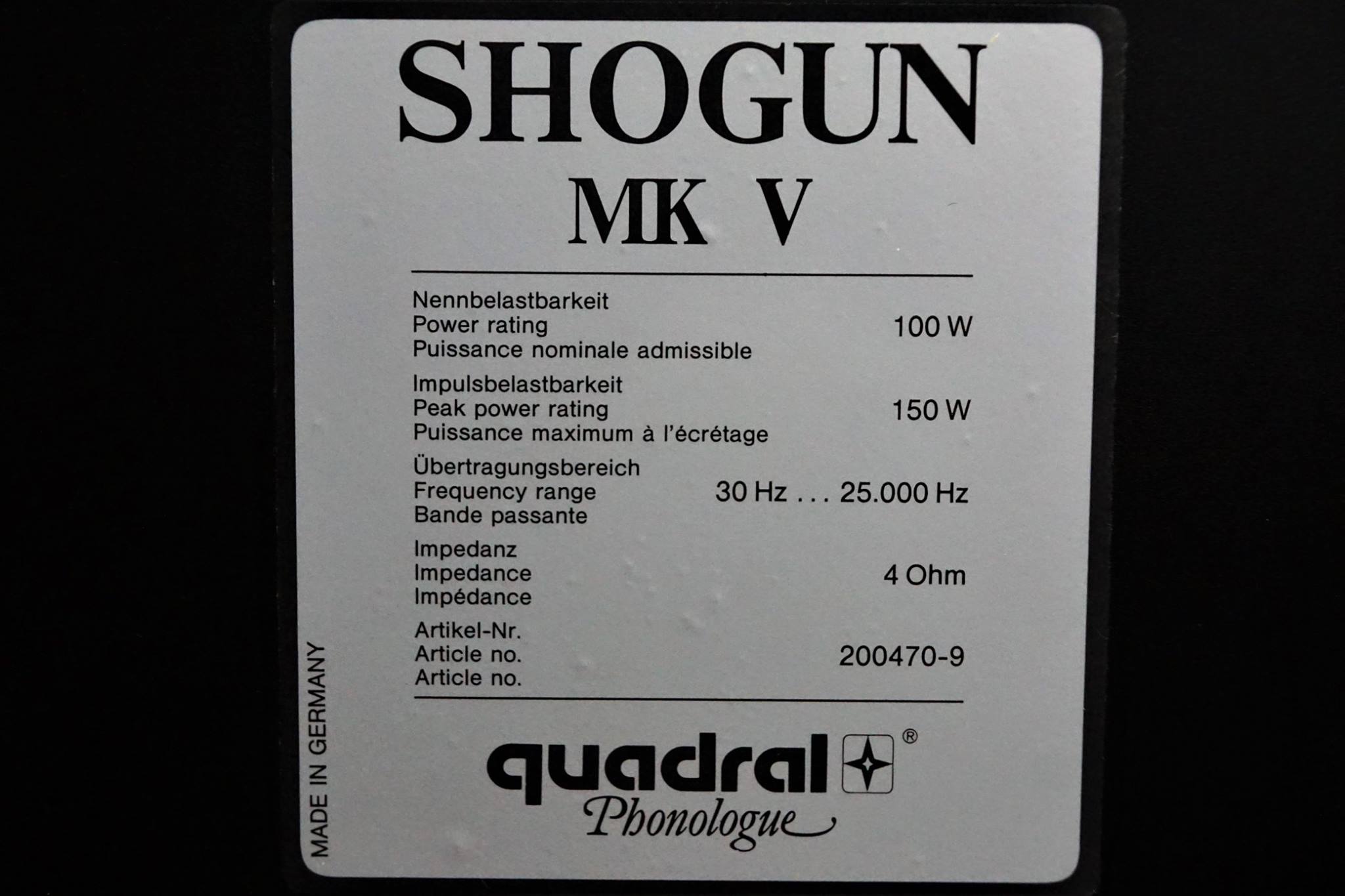

Art.no. 200470-9

The last Rondo, Altan, Shogun, Amun and Wotan are in the 1997 brochure. 1998 saw the transition to the Aurum series.

Other models of the same series (in ascending order of size):

• Rondo Mk V
• Altan Mk V
• Shogun Mk V
• Amun Mk V
• Wotan Mk V
• Montan Mk V
• Vulkan Mk V
• Titan Mk V

Previous models

• Shogun Mk II
• Shogun Mk III
• Shogun Mk IV

Successor models:

• [[Aurum

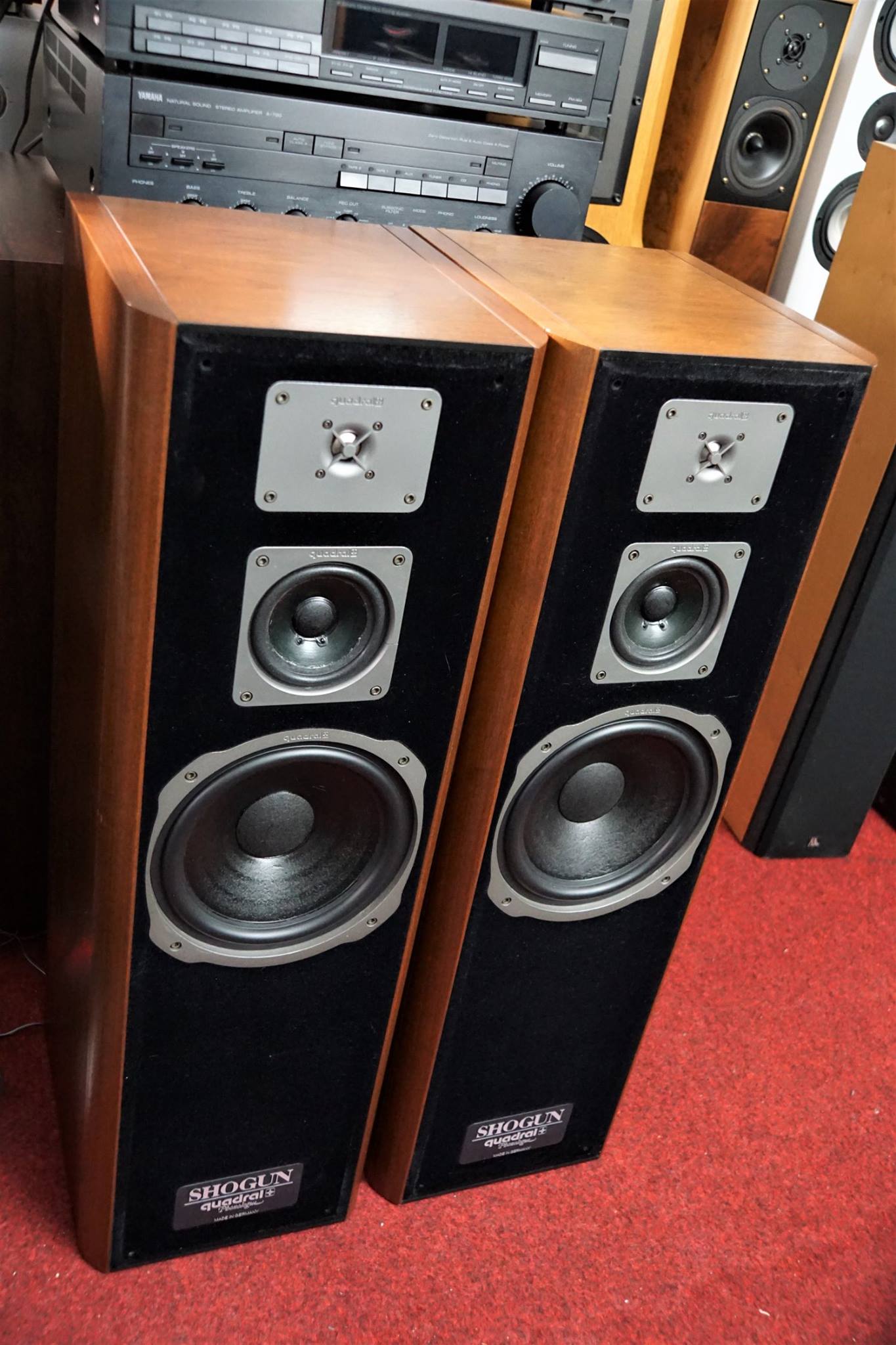

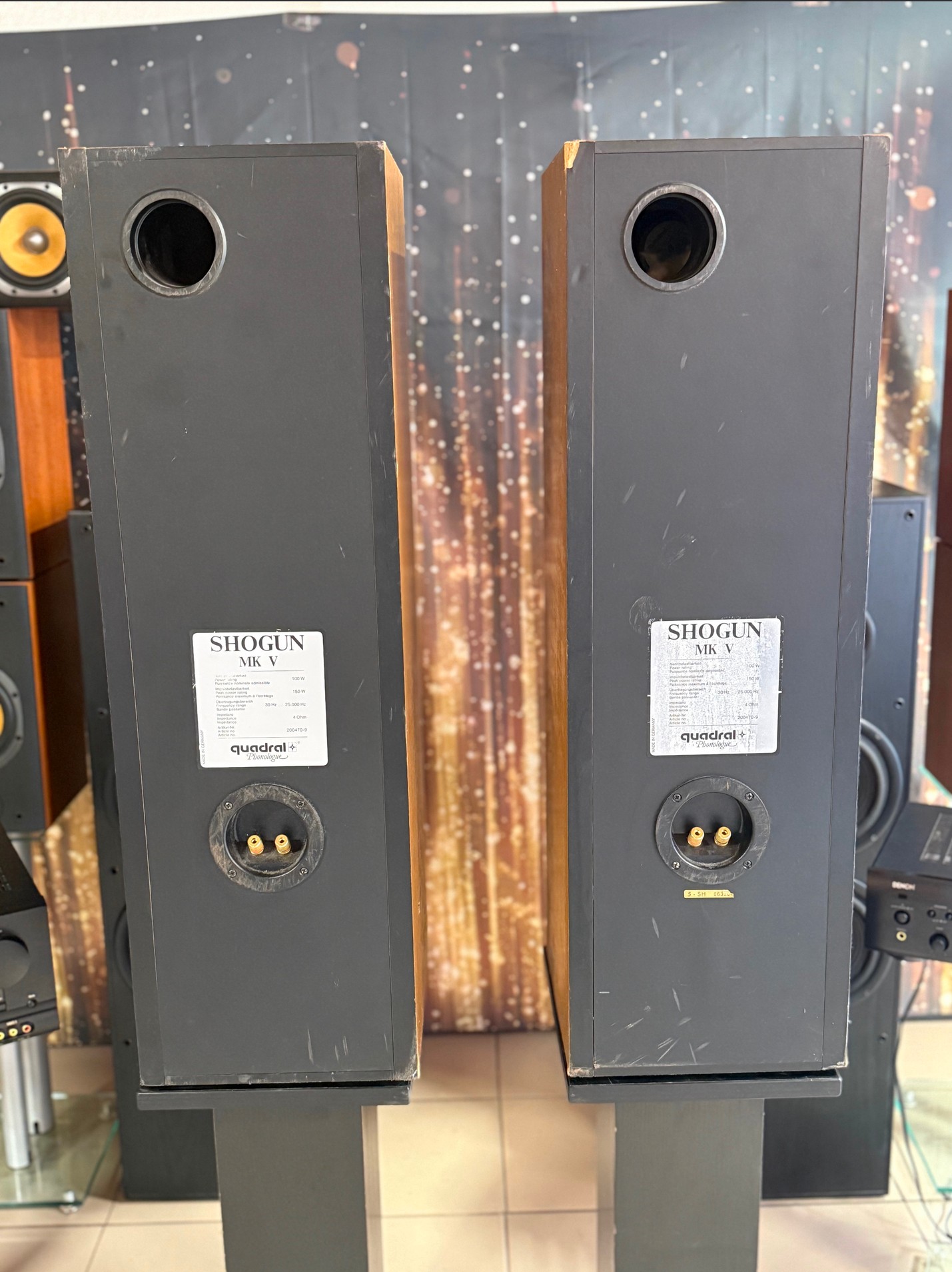

Pictures

Reports

• Test in Stereoplay 9/1992
