Latest revision as of 14:09, 26 September 2020
Data[edit]
General
- Manufacturer: Quadral
- Model: Wotan (Mk I)
- Type: Loudspeaker
- Years of manufacture: 1981 - 1983
- Manufactured in: Hanover, Germany
- Colour: Antique walnut, Mahogany, Rustic oak, Black oak
- Dimensions: 700 x 400 x 350 mm (HxWxD)
- Weight: 28 kg net
- Original price approx.: 1'300 DM/piece
Technical Data
- Type: 3-way O.L.C.D., floorstanding speaker
- Chassis:
- Woofer: 1 x 260 mm, coated (foam surround).
midrange driver: 1 x 120 mm, coated (fabric surround) Tweeter: 'ribbon' (magnetostat Technics TH-400)
- Power handling (nominal/music power): 150 / 200 Watt
- Efficiency: ? db/1 W/1 m (damping factor: 100).
- Frequency response:
- Frequency response: 30 - 50,000 Hz (±2 dB).
- Crossover frequencies: 400 / 4,000 Hz
- Impedance: 8 Ohm
Remarks[edit]
- Other models of the same series (in ascending order of size):
- Altan (Mk I)
- Wotan (Mk I)
- Vulkan (Mk I)
- Titan (Mk I)
- Successor models:
- Wotan Mk II
- Wotan Mk III
- Wotan Mk IV
- Wotan Mk V

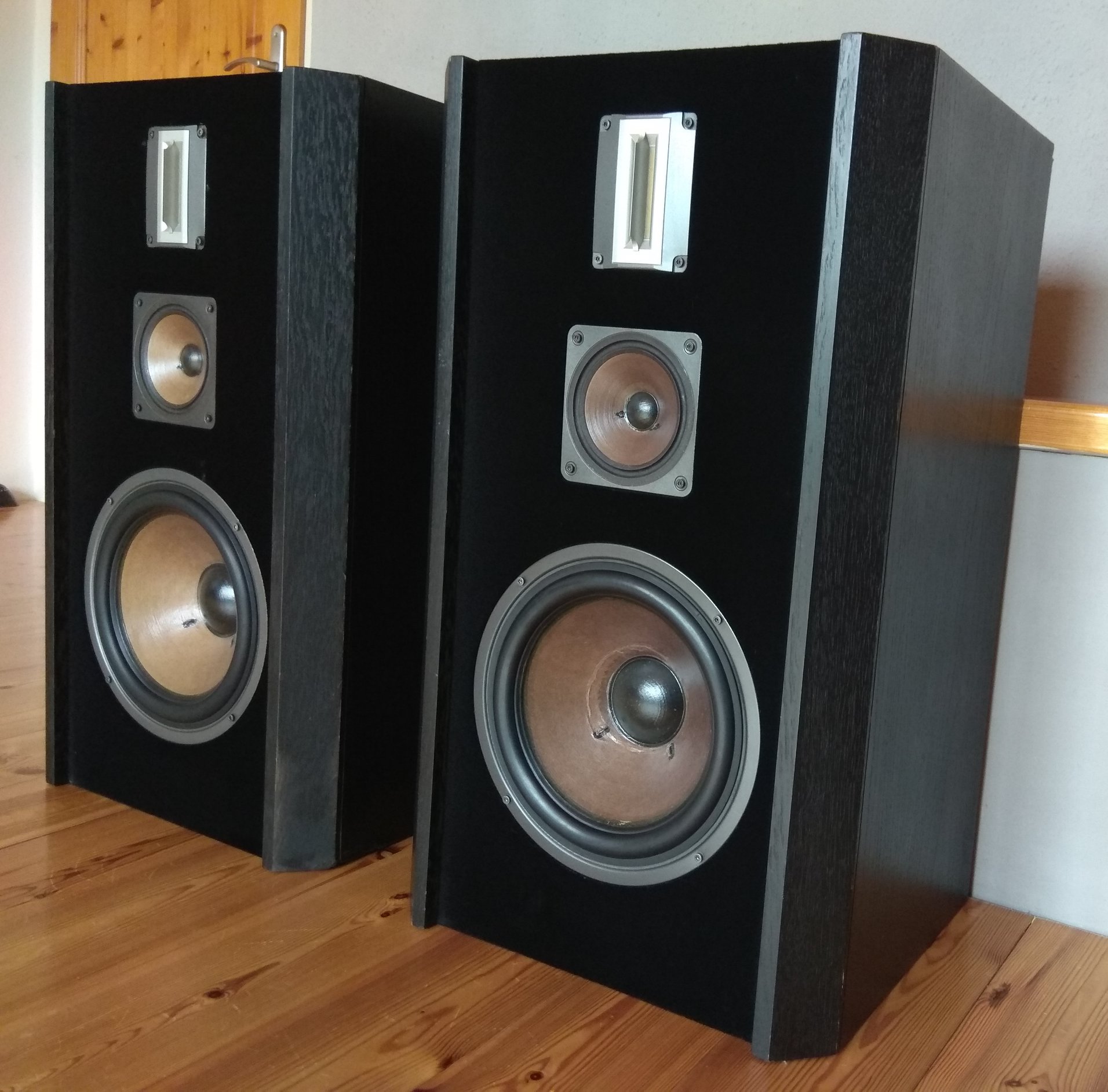

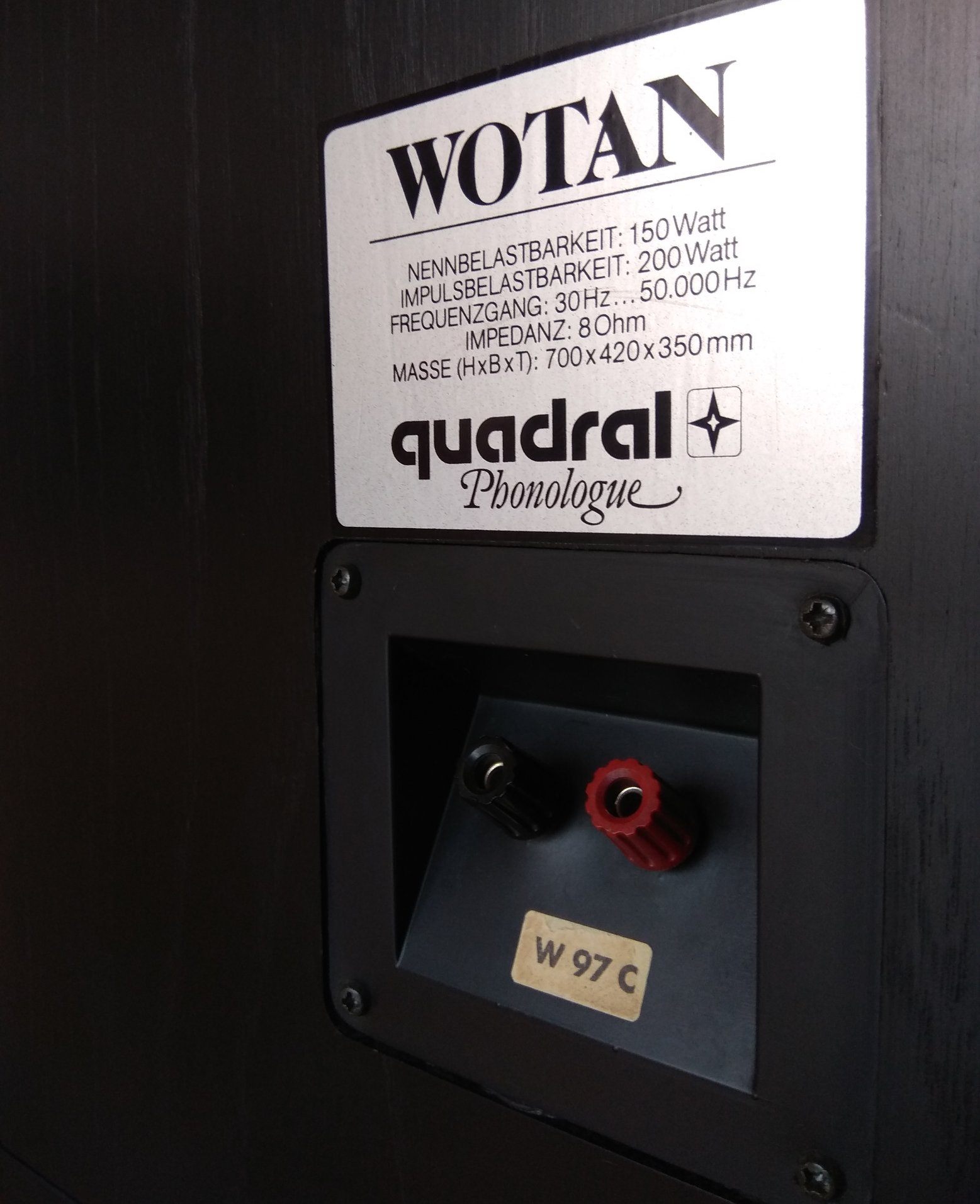

Pictures[edit]
- [[Image: Quadral Wotan
