Latest revision as of 12:19, 28 October 2025
Data
General
- Manufacturer: Quadral
- Model: Shogun Mk III
- Years of manufacture: 1986 - 1990
- Manufactured in: Hanover, Germany
- Color: walnut antique, mahogany, rustic oak, black oak, natural oak; special requests possible
- Dimensions: 665 x 354 x 350 mm (H x W x D)
- Weight:
- New price approx: 898, - DM / piece
Technical Data
- Type: 3-way, O.L.C.D., floorstanding speaker
- Chassis:
- woofer: 1x 260 mm
- Midrange driver: 1x 132 mm
- tweeter: 1x ribbon tweeter
- power handling (nominal/music): 100 / 150 W
- efficiency: ? dB/1W/1m
- Frequency response: 27 - 40.000 Hz
- crossover frequency: 280 / 4.000 Hz
- Impedance: 8 Ohm
Special Features
Remarks
Other models in the same series (in ascending order of size):
Previous models
Successor models:

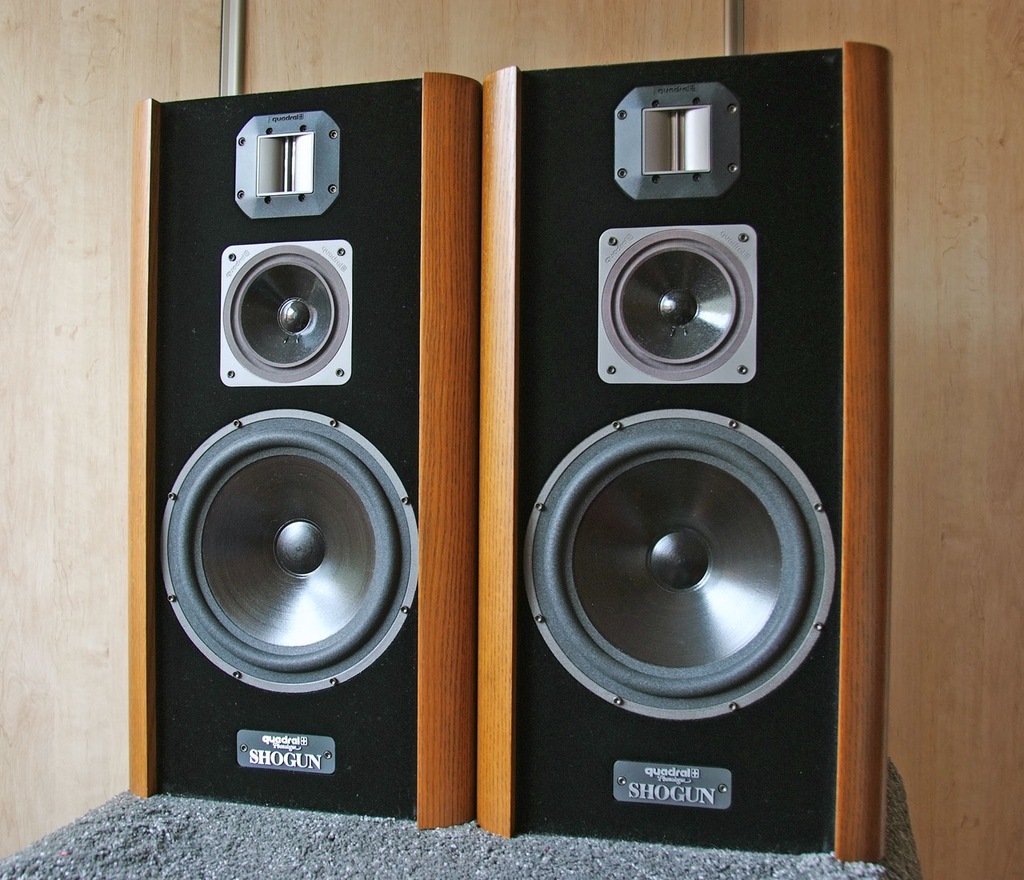

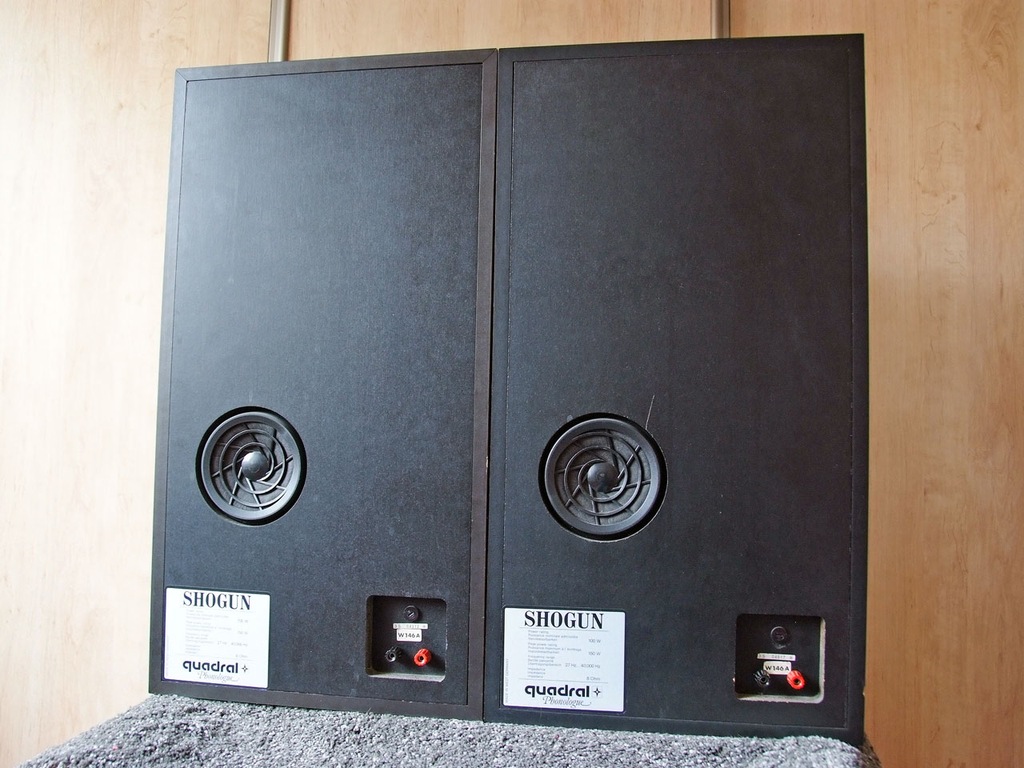

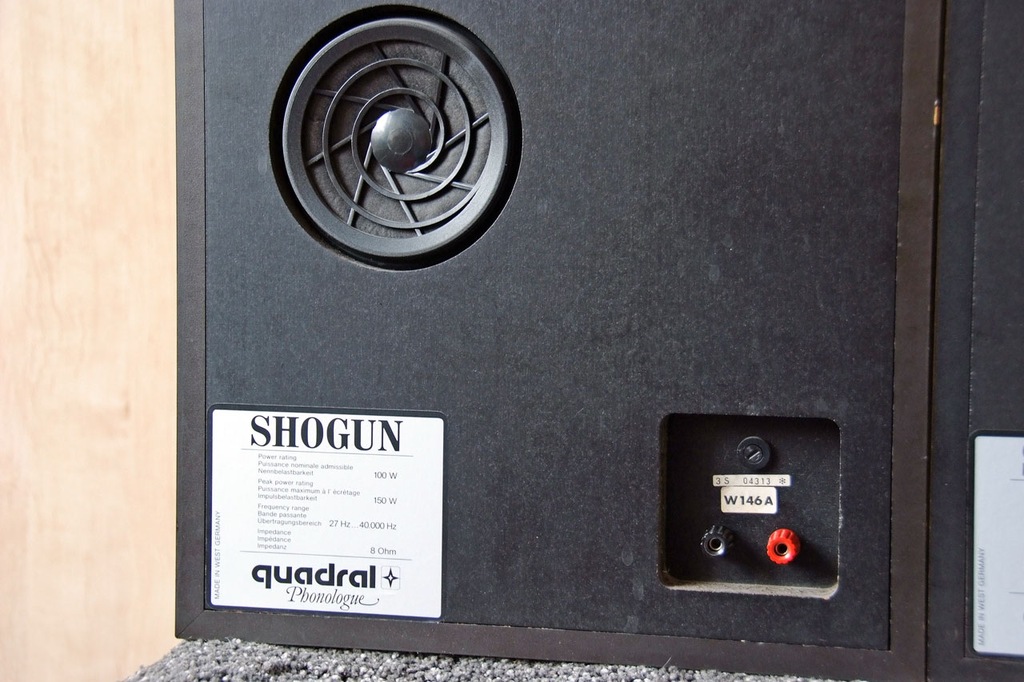

Pictures
- Extract from brochure: Quadral-Palette 1987
