JBL L 40
Data[edit]
General
- Manufacturer: JBL
- Model: L 40 (new edition of the model name / not to be confused with the model L40 or L40 A )
- Years of manufacture: 1995 - 1998
- Made in: Denmark
- Colour: black with mahogany trim
- Dimensions: 650 x 300 x 330 mm (HxWxD)
- Weight: 22 kg
- Original price approx.: 3000 DM (pair)
Technical data
- Type: 3-way bass reflex, floorstanding loudspeaker
- Chassis:
- woofer: JBL 708 G
midrange driver: JBL 704 G
- tweeter: JBL 050 Ti
Power handling: 50 - 200 W (recommended amplifier power)
- Efficiency: 88 dB (1 m/2.83 V)
- Frequency response:
- -6 dB: 45 - 30,000 Hz.
Axial: 60 - 20,000 Hz (±2 dB)
- ±30° horizontal: ±2 dB on 10 kHz
- ±10° vertical: ±2 dB on 10 kHz
- Frequency response:
- Transition ranges: 350 Hz / 2.5 kHz
- Impedance: 4 Ohm
Special Features
- Bi Wiring Terminals
Remarks[edit]
- Other models in the same series:
- JBL L 20
- JBL L 40
- JBL L 60
- JBL L 80
- JBL L 90
- JBL L 100 INT
- JBL L Center
Pictures[edit]

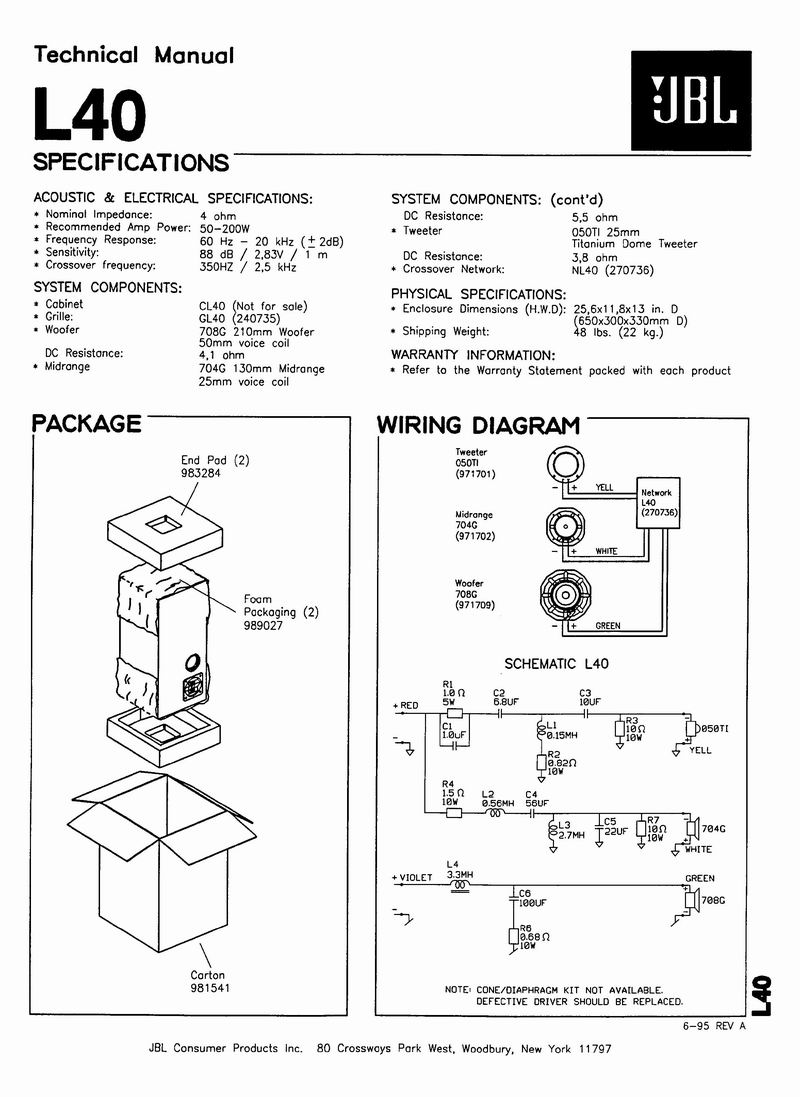

- Extract from brochure: JBL L 40
