Canton Ergo 690 DC

Data

General

• Manufacturer: Canton
• Model: Ergo 690 DC
• Years of manufacture: 2008 -
• Made in: Germany
• Color: ash veneer black, cherry veneer, wenge veneer (real wood veneer)
• Dimensions: 230 x 1050 x 305 mm (W x H x D)
• Weight: 23,5 kg
• Original price: from approx. 2.000,- € (RRP, pair)

Technical Data

• Construction: 3-way bass reflex

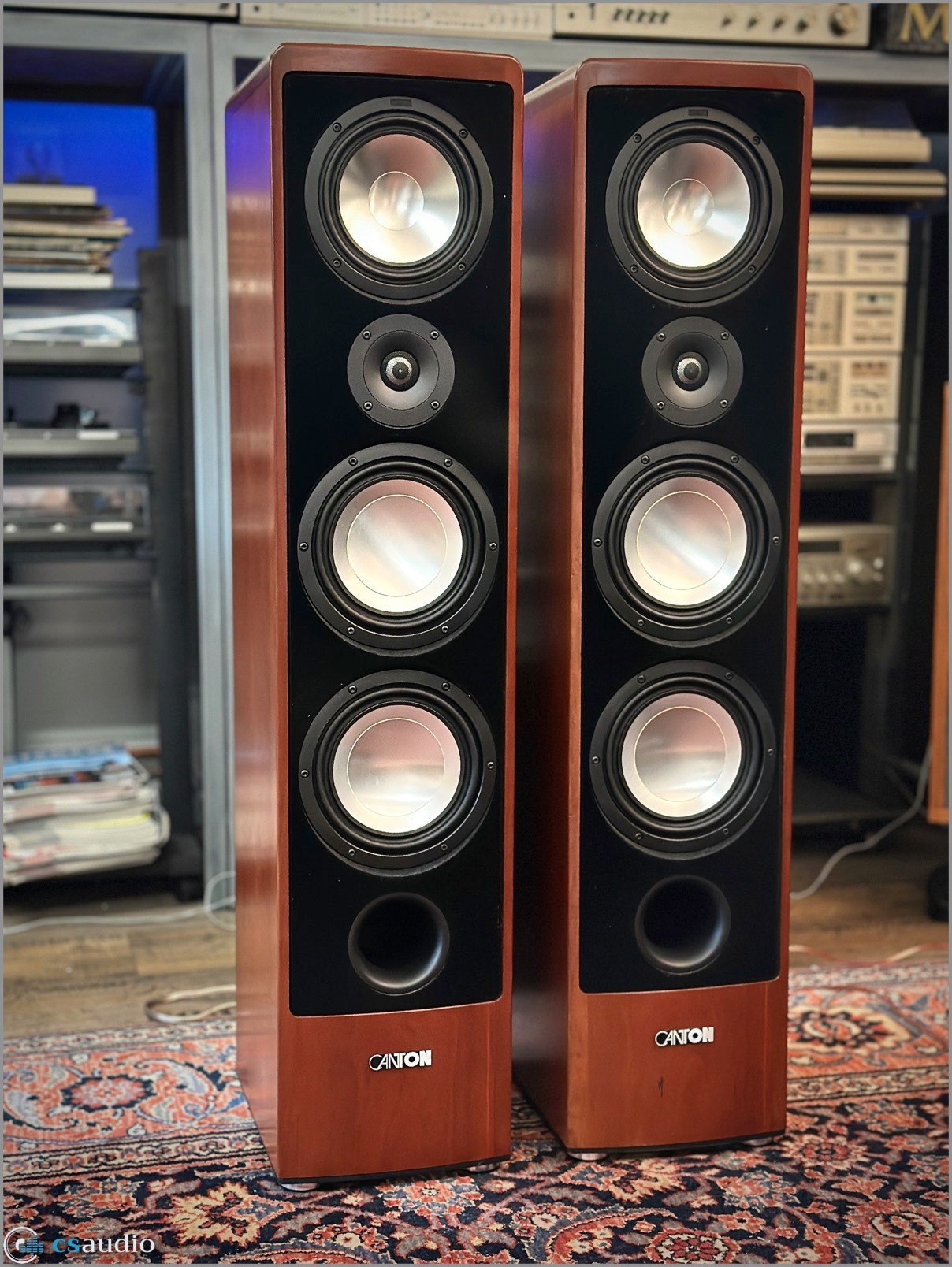

• drivers:
  • woofer: 2 x cone (Ø 200 mm, aluminium with "Wave" surround).

midrange driver: 1 x cone (Ø 180 mm, aluminium with "wave" surround)

• • tweeter: 1x dome (Ø 25 mm, aluminium-manganese)
• Power handling (nominal/music): 170 / 320 Watt

efficiency: 88.3 dB/1W/1m

• frequency response: 20 - 40.000 Hz
• Crossover: 250 / 3,000 Hz
• Impedance: 4 Ohm

Special Features

• DC technology (Displacement Control), prevents uncontrolled deflection of the woofers.

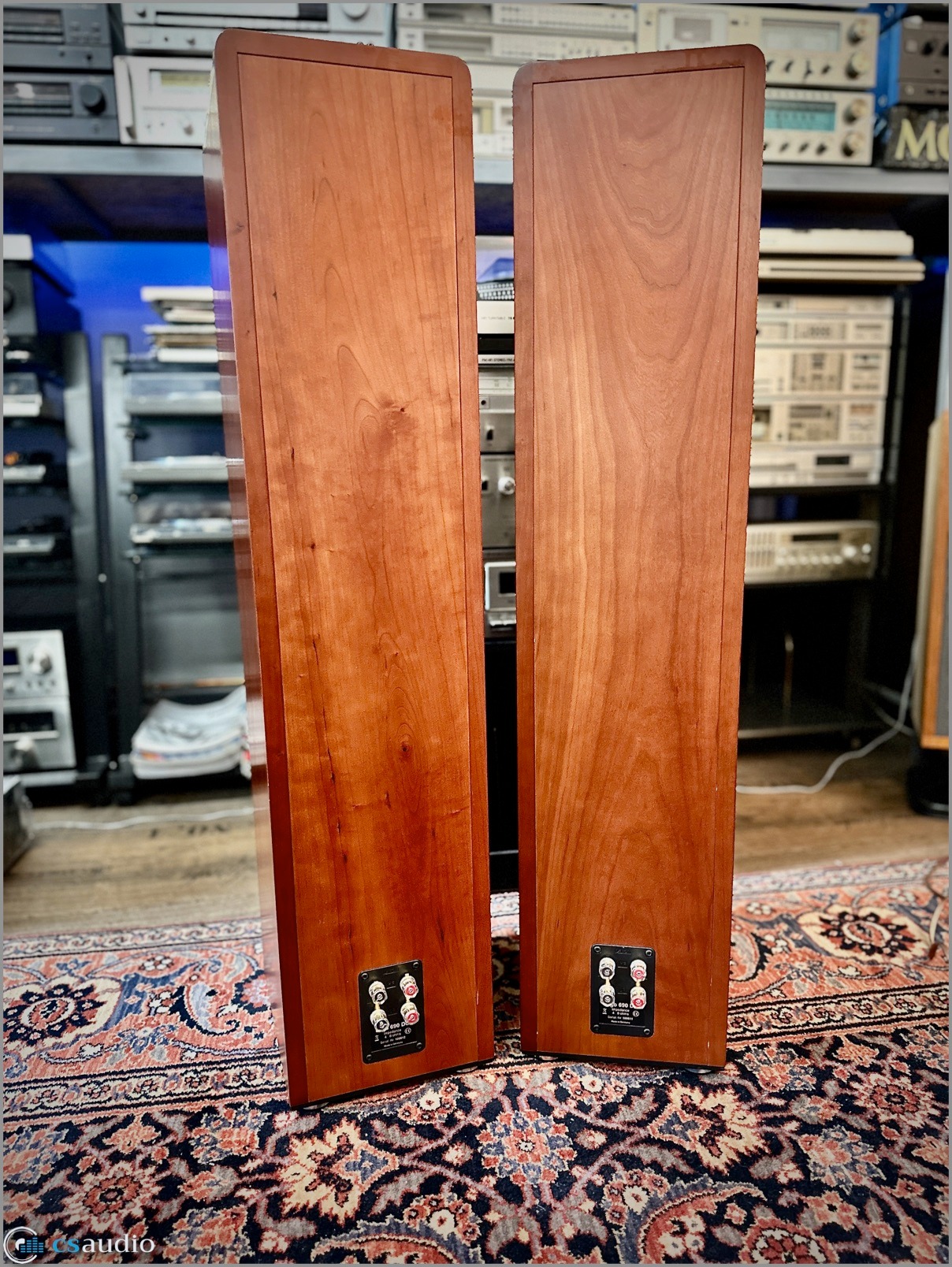

• gold-plated bi-wiring / bi-amping connection panel

Notes

Other models in the same series:

• Ergo 610
• Ergo 620
• Ergo 655 Center
• Ergo 670 DC
• Ergo 690 DC
• Ergo 695 DC

Predecessor model:

• Ergo 609 DC
