Data[edit]
General
- Manufacturer: Canton
- Model: Ergo 102 DC
- Years of manufacture: 1998 - 2001
- Made in: Germany
- Color: veneer - black ash, beech, oak, cherry
- Dimensions: 1150 x 260 x 347 mm (H x W x D)
- Weight: 31 kg (piece)
- Original price approx.: 2000 DM / piece
Technical Data
- Type: 3-way, bass reflex floorstanding speaker
- Chassis:
- Low frequency: 2x cone (Ø 220 mm)
Midrange: 1x cone (Ø 180 mm)
- tweeter: 1x dome (Ø 25 mm aluminium-manganese)
power handling (nominal/music): 200/350 W efficiency: 89 dB (1W at 1 m)
- frequency response: 20 - 30.000 Hz
- Crossover: 300/3500 Hz
- Impedance: 4 Ohm
Special Features
Remarks[edit]
Other models in the same series:
- Ergo 22 DC
- Ergo 32 DC
- Ergo 72 DC
- Ergo 82 DC
- Ergo 92 DC
- Ergo 102 DC
- Ergo 122 DC
- Ergo CM 52 DC
- Ergo R 52
Predecessor models:
Successor models:
- Ergo 1002 DC
- Ergo 100 DC The two largest floorstanding speakers with 22 and 26 bass, respectively, only received alternate successors every 2 generations.

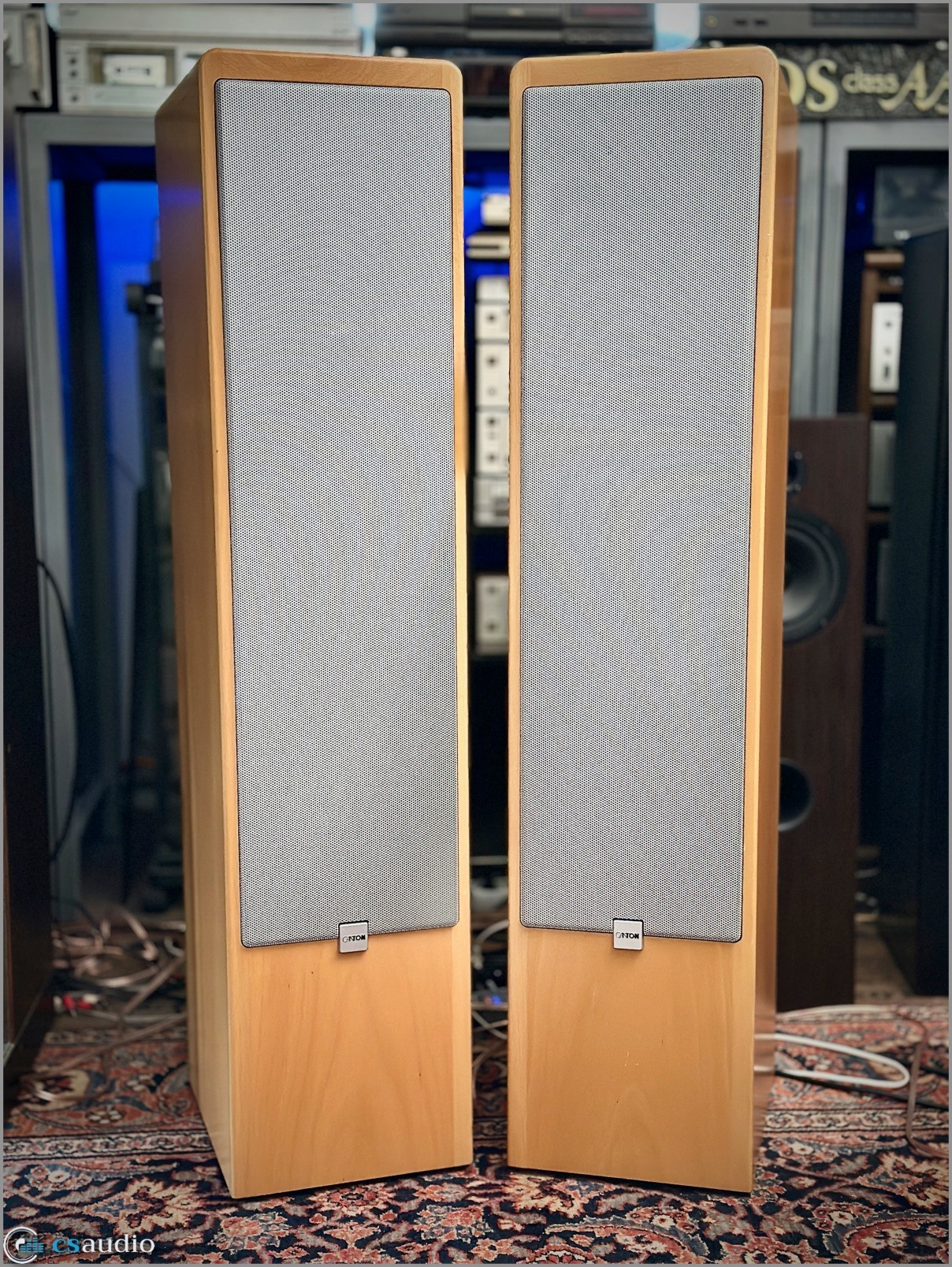

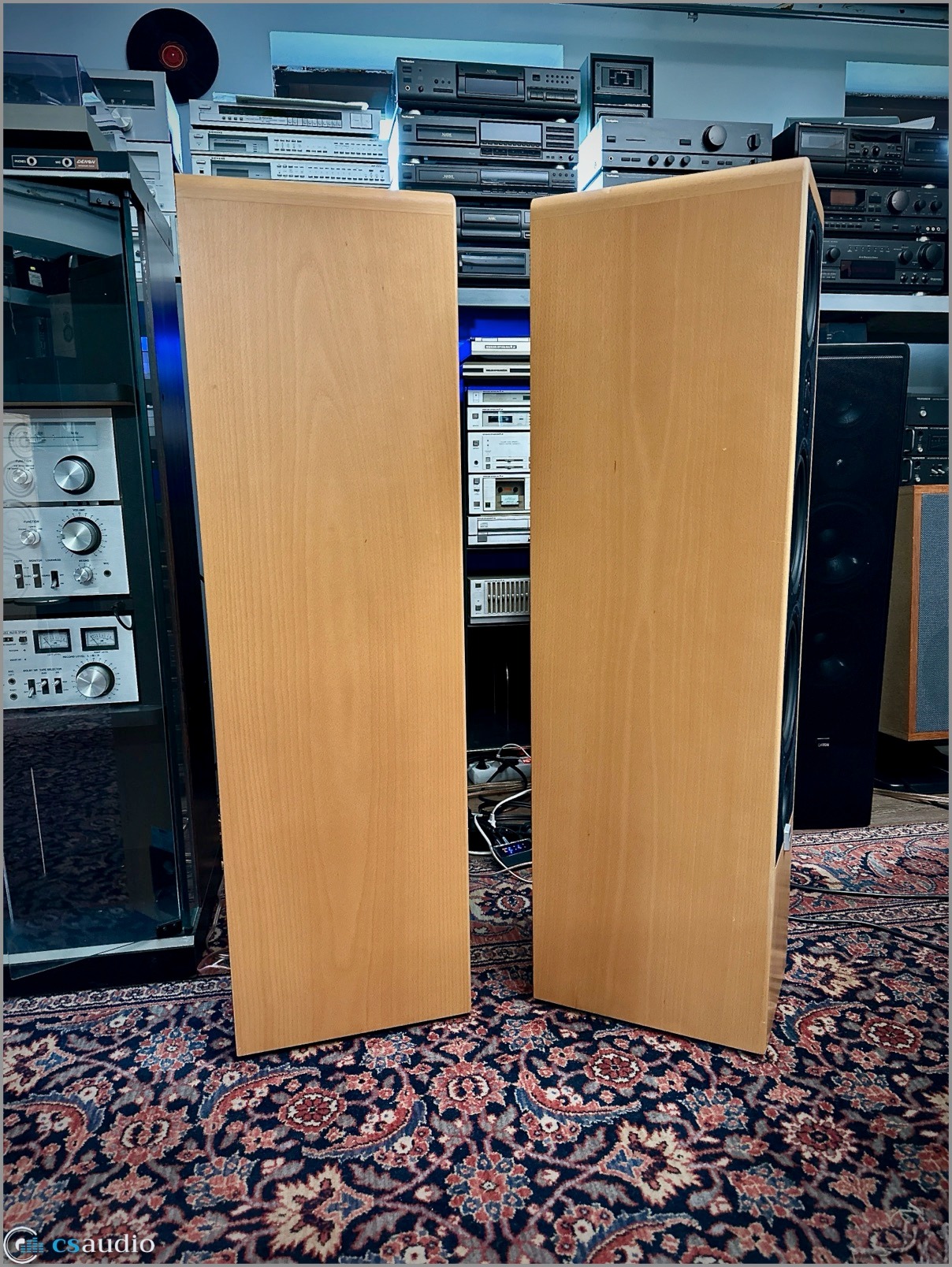

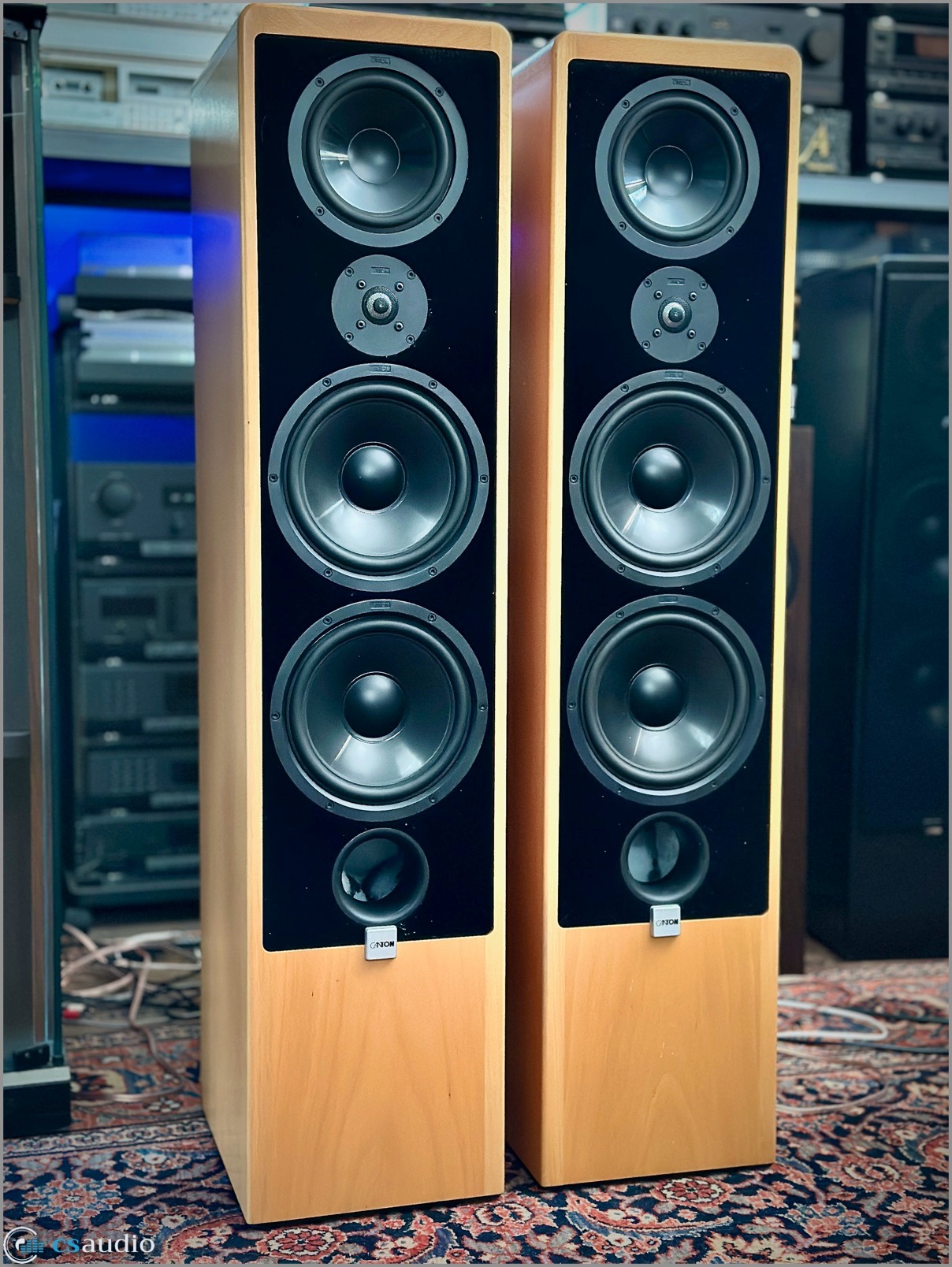

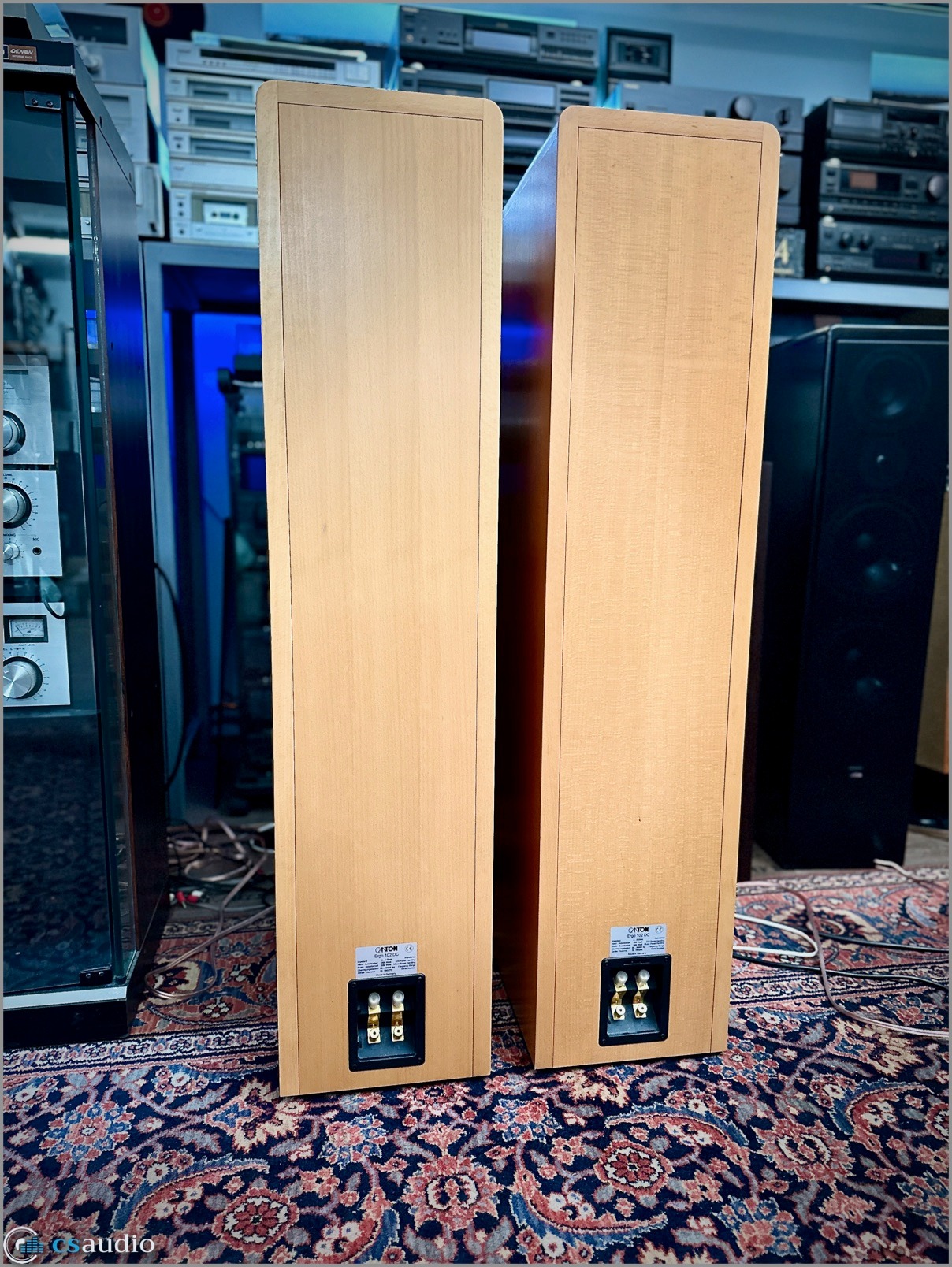

Pictures[edit]
Picture:Canton Ergo 102 DC.JPG Picture:Canton Ergo 102 DC 2.JPG
Reviews[edit]
- AUDIO issue 2/2001; 6 products tested: "top class" (4 points)
